24.4 Tissue product labels - Specification for the uniform labelling of human tissue products using ISBT 128

24.4.1: The base label

The base label dimensions are to be at least 110 mm wide by 104 mm high on all tissue containers/labels where the square format is used. Where the horizontal format is used, they will be at least 220 mm wide by 52 mm high.

It is noted that where tissues are stored in very small containers, the base label may be attached to a secondary container. In these circumstances, the inner container will be labelled with the donation number barcode to provide a link to the label on the outer packaging.

The guide marks on Figure 24.3 and Figure 24.4 are required to assist positioning of later labels.

24.4.1.1: Square format

The top left-hand quadrant will be used for the application of a donation identification number label. The space below this on the left-hand side of the label between 25 mm and 40 mm from the top edge must be left blank. This space may be pre-printed, for certain donations, by the company supplying the container with the lot/batch number of the container. This text must be visible at all times.

The bottom left-hand quadrant will be overstuck with a product description label.

The top right-hand quadrant will have pre-printed text indicating that the donation is in quarantine:

"QUARANTINE
NOT YET RELEASED FOR CLINICAL USE"

The top right-hand quadrant will be overstuck with a status label once its status has been determined (for cryopreserved products, this quadrant can be overstuck with a 'See outer container for product status' label). The status label can then be applied to a secondary container.

The bottom right-hand quadrant will be overstuck with an expiry date label which relates to expiry date prior to issue or to expiry date following issue.

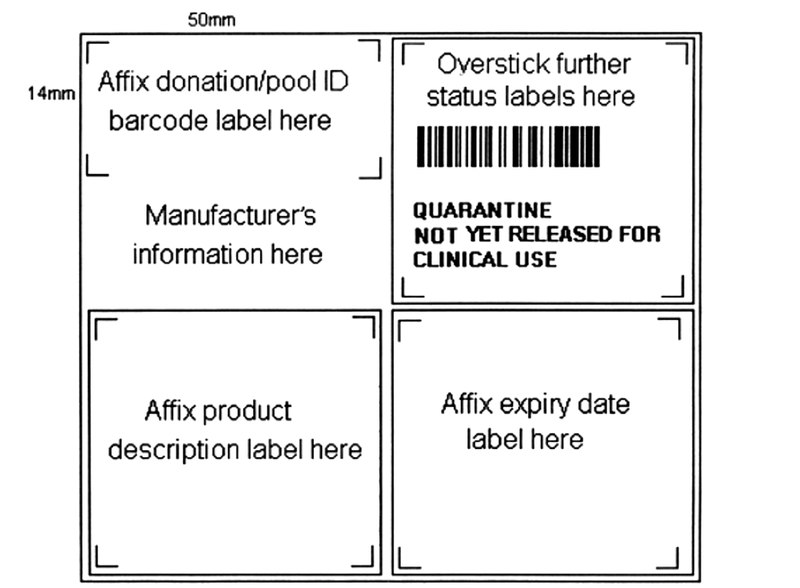

Description of Figure 24.3: Base label design - square format

The image shows an example of a base label design using the square format, in which the elements are arranged in a 2 by 2 grid with each element no more than 50mm wide.

The top-left quadrant is where the donation or pool identification barcode label is affixed, which has a height of 14mm, and contains the manufacturer's information.

The top-right quadrant is where the tissue product status label is affixed and may be overstuck with additional status labels.

The bottom-left quadrant is where the product description label is affixed.

The bottom-right quadrant is where the expiry date label is affixed.

24.4.1.2: Horizontal format

The same 4 quadrants will be used but the order in this case will be as shown in Figure 24.4.

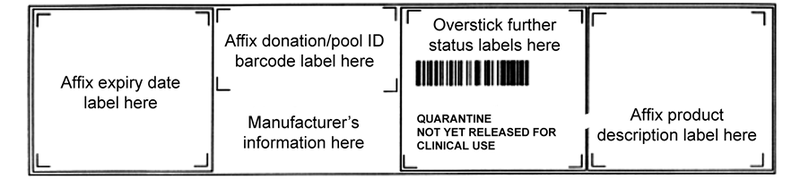

Description of Figure 24.4: Base label design - horizontal format

The image shows an example of a base label design using the horizontal format, in which the elements are arranged horizontally from left to right.

The first position is where the expiry date label is affixed.

The second position is where the donation or pool identification barcode label is affixed, and contains the manufacturer's information.

The third position is where the tissue product status label is affixed and may be overstuck with additional status labels.

The fourth position is where the product description label is affixed.

24.4.2: Donation and pool identification number labels

The donation identification number plays a critical role in the safety of the tissue supply. It provides a unique identification number which cross-references tissue donations and products and samples taken at the time of donation. Where tissue products are not further processed, they are issued with the same donation identification number label.

Donation identification number labels must be generated in sets under strictly controlled conditions which ensure that all the labels in a set bear the same number, and that each set is unique. It is the responsibility of the manufacturer of the label sets to undertake appropriate quality control measures to ensure these conditions are met.

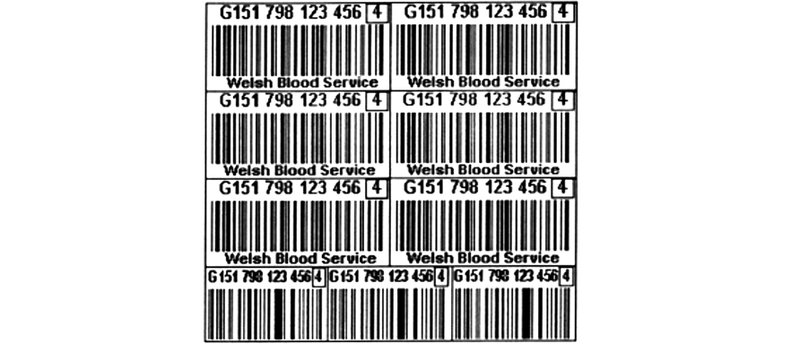

Description of Figure 24.5: Donation identification number label set

The image shows an example of a set of labels for the same donation identification number (DIN). The eye-readable DIN is given above each barcode. The Blood Establishment text is given below each barcode. 6 standard width barcodes are arranged in a grid of 2 columns and 3 rows. 3 reduced width barcodes are arranged horizontally below.

Pool identification number labels are generated on demand when donations are processed together, whether from one or more donors.

As tissues are usually transferred from their original containers to secondary and tertiary containers during processing, it is a requirement that donation and pool identification numbers can be printed on demand.

An example set of identification numbers is shown in Figure 24.5. Barcode density information is provided in the ISBT 128 Standard Technical Specification. The structure of the donation identification number is described further below.

For identification number labels to be applied to tissue products, the dimensions of the label are as indicated in Figure 24.6. As with all barcodes, there should be a minimum 'quiet zone' of 2.5 mm between the edge of the label and the start of the barcode. This label is affixed to the top left-hand section of the base label.

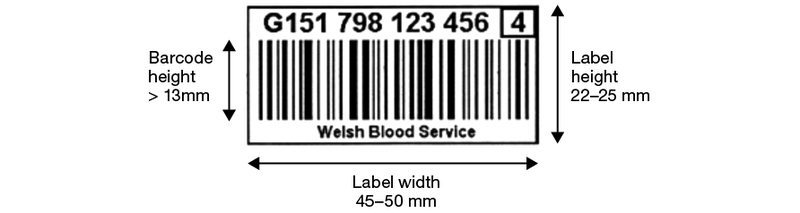

Description of Figure 24.6: Donation number label dimensions

The image shows the dimensions of the donation number label. The label height is between 22mm and 25mm and the label width is between 45mm and 50mm. The barcode height must be greater than 13mm.

The donation identification number complies with ICCBBA Data Structure 001. The country/collection facility identification codes included within this data structure are allocated by ICCBBA and a list of these can be downloaded from the ICCBBA website. Any tissue service site within the UK requiring a new facility code must make a request first to the Standing Advisory Committee on Information Technology (SACIT) before applying to ICCBBA for registration.

The collection year characters (6 and 7) should correspond to the last 2 digits of the year in which collection took place. In practice, this cannot be readily achieved using pre-printed labels without considerable wastage. Within the UK, it is therefore permissible to allow a maximum variation of 1 month either way, i.e. it is permissible to use the previous year's collection year characters up to 31 January in the current year, and to use donation numbers with the following year's collection year characters from 1 December in the current year.

The use of ICCBBA Data Structure 001 allows either an inclusion of the modulus 37,2 check digits or the ability to use the last 2 characters as process control flags. At present, all UK donation identification numbers incorporate the modulus 37,2 check digits. If the check digits are not used and process control flags are used in their place, they must be registered and authorised by SACIT prior to their use.

The algorithm for calculating 37,2 check characters can be found in the ISBT 128 Standard Technical Specification. Users will need to take into account that units imported from countries outside the UK may well use these flag characters for process control as permitted in the specification.

The eye-readable format of the donation identification number in the UK comprises the data characters excluding the flag characters, followed by the manual entry check character. The layout differs from that in the ISBT 128 Standard Technical Specification in that all characters of the number must be of equal size and weight. Printing of the 6-digit unit serial number in larger or bold characters is not permitted. Software manufacturers should ensure that only the eye-readable format is presented in screen displays.

If process control flags are used within the donation identification number, they must be displayed as per the standard between the last digit and the boxed eye-readable check digit (i.e. 90 degrees to the rest of the number) as shown in Figure 24.7.

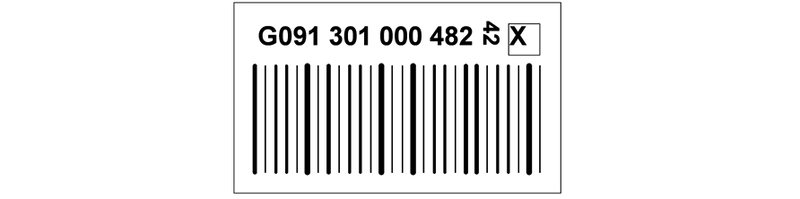

Description of Figure 24.7: Donation number showing process control/flags characters

The image shows an example of a donation number label with process control flag characters and check digits. The donation identification number (DIN) is given in an eye-readable format using a 4,3,3,3 layout above the DIN barcode. The flag character (42) is shown after the eye-readable DIN and is rotated 90 degrees clockwise. The check digit (X) is shown in a box after the flag character.

The number should be displayed with the characters grouped in a 4,3,3,3,1 arrangement. It is recommended that the check character be enclosed in a box where this is possible. The check character set uses the characters I (letter) and 1 (number), and O (letter) and 0 (number), and the font selected should allow easy differentiation between these characters.

Where the donation identification number has to be recorded manually, form designs that assist accurate recording, such as the use of boxes to encourage correct character grouping, are recommended.

An example is given in Figure 24.8.

Description of Figure 24.8: Form boxes designed to enable accurate recording

The images shows an example of a form designed to include a handwritten donation identification (DIN). The form is labelled 'Donation nuumber' and 5 boxes are provided to write the DIN in a 4,3,3,3,1 format. The example DIN used is 'G1417981234564'

The first box contains the first 4 characters and reads 'G151'.

The second box contains the next 3 characters and read '798'.

The third box contains the next 3 characters and read '123'.

The fourth box contains the next 3 characters and read '456'.

The fifth box contains the check digit and reads '4'.

The full eye-readable donation identification number, including check character, must be recorded and entered in all cases. The use of pre-programmed shortcut keys ('hot keys') or pre-printing of part of a number is not acceptable.

24.4.3: The product label

The product label (50–55 mm wide by 50–52 mm high) is affixed to the left lower quadrant of the square base label or the right-hand side of the horizontal base label, if printed as a single quadrant (it may be printed as a combined label with another quadrant).

A start product label is attached to all base labels at the time of tissue retrieval. If the tissue remains in the same container until the time of issue for implantation, it is issued with this product label. If it is subjected to further processing while remaining in its original container (e.g. gamma irradiation), the start product label is overstuck with the appropriate final product label before application of a status label. If it is transferred to another container following processing, a new base label is attached and the appropriate final product label is attached to the lower half of the base label following processing.

The template for the product label is shown in Figure 24.9.

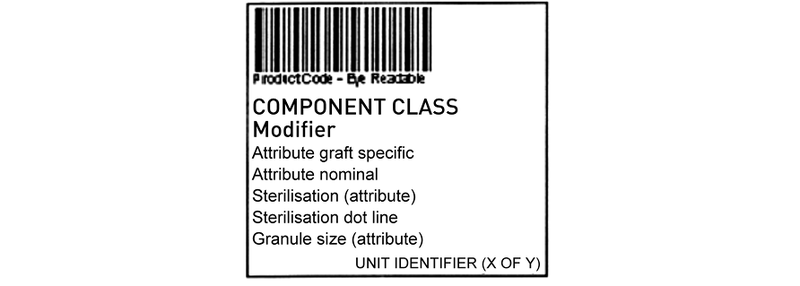

Description of Figure 24.9: Tissue product label template

The image shows a template for the tissue product label. The product code should be included in eye-readable and barcode format. Text beneath the product barcode should give the 'Component class' and 'modifier', and additional information about attributes, sterilisation and granule size. A unit identifier, in the format X of Y, should also be included on the label.

Codes for tissues and tissue products should only be used if they are registered with ICCBBA, approved by the Standing Advisory Committee on Cellular Therapy Products (SACCTP) and SACIT.

New tissue donations and tissue products will have codes assigned as required by SACIT, in liaison with SACCTP and ICCBBA. Requests for new codes should be made to the Chair of SACIT with notification to the Chair of SACCTP.

Updates of the Human Tissue Code Database can be obtained from the ICCBBA website.

The first 2 lines of text contain the tissue component class and modifier, for example:

"CORTICO-CANCELLOUS BONE RING
Freeze-dried"

Lines 3 to 7 describe various attributes, where relevant, though 1 of these can be used to provide further product description information (see 24.4.5 below). It is not necessary to include the unit of issue attribute details.

Space will be available next to the method of sterilisation attribute where exposure 'dots' can be applied. The significance of the dot colour need not be detailed on the label but can be explained in the package insert.

The volume/dimension field will contain either the actual or nominal tissue volume or other relevant dimensions (e.g. length, depth). Immediately under the product barcode will be the unique reference number of the label which will correspond to the eye-readable barcode without the data identifier characters.

An example of a product label is given in Figure 24.10.

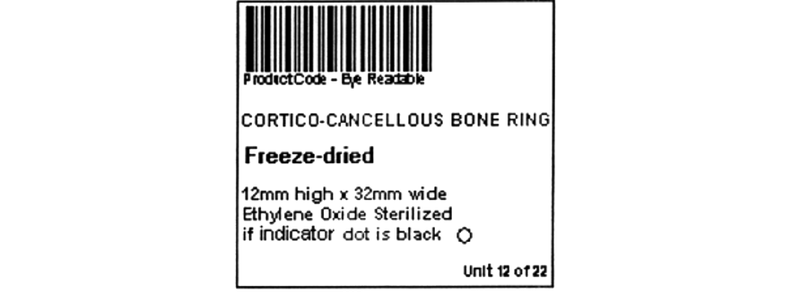

Description of Figure 24.10: Product label example

The image shows an example of a tissue product label. The product code is included in eye-readable and barcode format. Text beneath the product barcode gives the name and details of the product and reads 'Cortico-cancellous bone ring, freeze dried'. The product dimensions are indicated and read '12mm high by 32mm wide'. Information about sterilisation is included and reads 'Ethylene oxide sterilized if indicator dot is black' alongside the indicator dot. A unit identifier is also included on the label and reads 'Unit 12 of 22'.

24.4.4: The tissue status label

The tissue status label is a demand-printed label (50–55 mm wide by 50–52 mm high). The overall layout of the label is shown in Figure 24.11. This label can include graft-specific information such as date and site of donation.

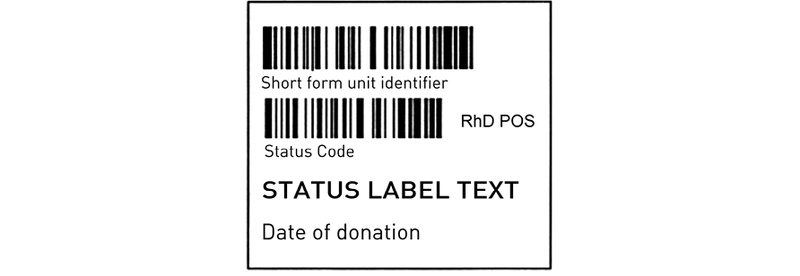

Description of Figure 24.11: Tissue release status label

The image shows a template for the tissue status label. The short form unit identifier barcode and blood group barcode should be included. Status label text and the date of donation should be given below the barcodes.

An example of a status label is given in Figure 24.12.

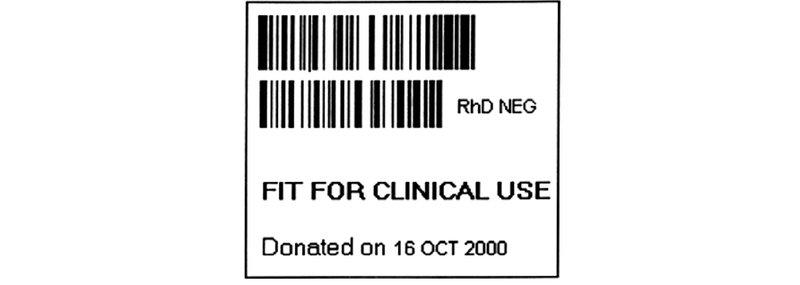

Description of Figure 24.12: Status label example

The image shows an example of a tissue status label. The short form unit identifier barcode and blood group barcode are included and the blood group text reads 'RhD Neg'. The tissue status is given below the barcodes and reads 'Fit for clinical use'. The date of donation is included and reads 'Donated on 16 Oct 2000'.

The elements of the label content from top to bottom are described in the following sections.

24.4.4.1: Non-ICCBBA defined data structure - unit identifier (short form ID)

The tissue status label is unique to a specific donation. To ensure that it is affixed to the correct container a barcode, the nationally defined identification code, is printed on the label. This is used by the Service in a concatenated read with the donation identification number at the time of labelling. Please note, although this is a non-ICCBBA defined data structure, it is ICCBBA authorised and controlled in the UK through the SACIT committee.

The structure of the short form unit identifier is defined in chapter 24.3.5. Either the &a or &b versions of the code can be used.

Barcode indicating product status and the statement of product status

The statement of product status (which appears below the barcode) will be one of those listed in Table 24.1.

The barcode giving the product status is taken from the ISBT 128 Standatd Technical Specification.

24.4.4.2: Donation-specific information

Specific information which applies to the donation may be included on this label. This includes the RhD blood group and the date of donation.

The RhD blood group is only relevant where red cells remain in the final tissue product and where the product is supplied for female recipients of childbearing age.

Below the short form unit identifier is printed the RhD blood group barcode for certain products. The text relating to RhD type will be printed to the right of the status barcode. Where the RhD type is indicated, products will always be fit for clinical use.

Within the UK, the blood group data structure will reflect that given in the ICCBAA Data Structure 002.

The code structure is =%ggre where:

gg

is the ABO/Rh/status code

re

are not used in the UK at this time and are both set to 0 (i.e. 00)

The default ABO/Rh codes or the special message codes described in the ISBT 128 Standard Technical Specification will be used as indicated.

For example, an RhD positive unit will code as =%T100

The barcode and text content of these labels is described in 24.4.5 below.

Date of donation can also be included on this label following the conventions described for expiry dates. This information does not need to be barcoded; it is represented in text only and must comprise the day number, the month represented by its first 3 characters, and the 4-digit year (e.g. 1 FEB 2002).

24.4.5: Status label definitions

For each of the special message codes indicated in the status label section, an associated status label is defined. The specification for these labels is divided into two sections, used for:

• Essential information which must be present on the label as specified
• Optional information which may be added if desired

All labels are to be demand-printed black on white.

Table 24.1: Statements of product status

Statement	Status code
FIT FOR CLINICAL USE (RhD NOT DEFINED)	T3
QUARANTINE NOT YET RELEASED FOR CLINICAL USE	Mq
RhD POS FIT FOR CLINICAL USE	T1
RhD NEG FIT FOR CLINICAL USE	T2
MUST BE STERILIZED	T6
BIOHAZARDOUS	Mb
DISCARD	Md
FOR IN VITRO R & D ONLY	Mr
SEE OUTER CONTAINER FOR PRODUCT STATUS	T5
AUTOLOGOUS USE FIT FOR CLINICAL USE	Ma
AUTOLOGOUS USE QUARANTINE	T4

24.4.5.1: T3 'FIT FOR CLINICAL USE' (RhD not specified)

Essential information

Barcode

ISBT 128 group code, where gg = T3. Positioned to allow concatenated read with an adjacent donation number.

Text

The words 'FIT FOR CLINICAL USE' in upper-case letters of minimum height 4 mm.

24.4.5.2: Mq 'QUARANTINE – NOT YET AVAILABLE FOR CLINICAL USE'

Essential information

Barcode

ISBT 128 group code where gg = Mq. Positioned to allow concatenated read with an adjacent donation number.

Text

• The words 'QUARANTINE' in upper-case letters of minimum height 6 mm.
• The words 'NOT YET RELEASED FOR CLINICAL USE' in upper-case letters of minimum height 3 mm.

Optional information

Text

The word 'Reason:' followed by a free-format message giving the reason for hold.

24.4.5.3: T1 'RhD POS – FIT FOR CLINICAL USE'

Essential information

Barcode

ISBT 128 group code where gg = T1. Positioned to allow concatenated read with an adjacent donation number.

Text

• The words 'RhD POS' in upper-case letters (except the 'h') of minimum height 6 mm to appear to the right of the status barcode.
• The words 'FIT FOR CLINICAL USE' in upper-case letters of minimum height 3 mm.

24.4.5.4: T2 'RhD NEG – FIT FOR CLINICAL USE'

Essential information

Barcode

ISBT 128 group code where gg = T2. Positioned to allow concatenated read with an adjacent donation number.

Text

• The words 'RhD NEG' in upper-case letters (except the 'h') of minimum height 6 mm to appear to the right of the status barcode.
• The words 'FIT FOR CLINICAL USE' in upper-case letters of minimum height 3 mm.

24.4.5.5: T6 'MUST BE STERILIZED'

Essential information

Barcode

ISBT 128 group code where gg = T6. Positioned to allow concatenated read with an adjacent donation number.

Text

The words 'MUST BE STERILIZED' in upper-case letters of minimum height 3 mm.

Optional information

Text

The word 'Reason:' followed by a free-format message.

24.4.5.6: Mb 'BIOHAZARDOUS'

Essential information

Barcode

ISBT 128 group code where gg = Mb. Positioned to allow concatenated read with an adjacent donation number.

Text

• The word 'BIOHAZARDOUS' in upper-case letters of minimum height 4 mm.
• The words 'HIGH RISK' in upper-case letters of minimum height 6 mm.

Symbol

Biohazard warning symbol of minimum height 20 mm.

24.4.5.7: Md 'DISCARD'

Essential information

Barcode

ISBT 128 group code where gg = Md. Positioned to allow concatenated read with an adjacent donation number.

Text

• The word 'DISCARD' in upper-case letters of minimum height 4 mm.
• Optional information.
• The word 'Reason:' followed by a free-format message.

24.4.5.8: Mr 'FOR IN VITRO R & D ONLY'

Essential information

Barcode

ISBT 128 group code where gg = Mr. Positioned to allow concatenated read with adjacent donation number.

Text

The words 'FOR IN VITRO R & D ONLY' in upper-case letters of minimum height 3 mm.

24.4.5.9: T5 'SEE OUTER CONTAINER FOR PRODUCT STATUS'

Essential information

Barcode

ISBT 128 group code where gg = T5. Positioned to allow concatenated read with adjacent donation number.

Text

The words 'SEE OUTER CONTAINER FOR PRODUCT STATUS' in upper-case letters of minimum height 3 mm.

24.4.5.10: Ma 'AUTOLOGOUS USE (FIT FOR CLINICAL USE)'

Essential information

Barcode

ISBT 128 group code where gg = Ma. Positioned to allow concatenated read with adjacent donation number.

Text

• The words 'AUTOLOGOUS USE' to appear in upper-case letters of minimum height 4 mm.
• The words 'FIT FOR CLINICAL USE' to appear in upper-case letters of minimum height of 4 mm.

24.4.5.11: T4 'AUTOLOGOUS USE (QUARANTINE)'

Essential information

Barcode

ISBT 128 group code where gg = T4. Positioned to allow concatenated read with adjacent donation number.

Text

• The words 'AUTOLOGOUS USE' to appear in upper-case letters of minimum height 4 mm.
• The word 'QUARANTINE' to appear in upper-case letters of minimum height 4 mm.

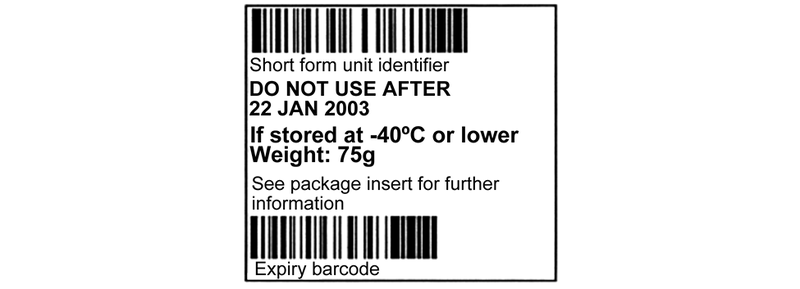

24.4.6: The expiry date label

An expiry date label will be applied to base labels at the time of tissue retrieval and whenever another base label is used. A final expiry date label may be applied at the time of issue if the bank follows a policy of shortening the shelf life at the time of issue.

The use of a barcoded version of expiry date is optional. If used, it should follow either ICCBBA Data Structure 004 or 005 (it should be noted that Data Structure 004 will be stood down in the near future and only Data Structure 005 will be valid).

24.4.6.1: For ICCBBA Data Structure 004

The code structure is =>cyyjjj where:

=>

are the data identifiers

c

designates the century (e.g. 9 for 1999; 0 for 2000)

yy

designates the year

jj

is the Julian date (i.e. the number of the day in the year, e.g. 022 is 22 JAN)

24.4.6.2: For ICCBBA Data Structure 005

The code structure is &>cyyjjjhhmm where:

&>

are the data identifiers

cyyjjj

are as Data Structure 004

hhmm

signifies the hour and minutes the product expires

It should be noted the default expiry for a product with a lifespan counted in full days will be 23:59 ( i.e. the product will expire on the last day at 23:59).

24.4.6.3: Other information

The expiry date must be presented in eye-readable format. Additional text will follow each expiry date and will be specific for each product. For instance:

"22 JAN 2003 if stored at –40°C or lower"

The eye-readable text must be printed with characters of no less than 3 mm height. The content must comprise the day number, the month represented by its first 3 characters, and the 4-digit year (e.g. 1 FEB 2002).

The use of the date format DD MMM YYYY avoids problems which may arise due to national differences in the order of the elements of numerically expressed dates. The accepted month abbreviations are JAN, FEB, MAR, APR, MAY, JUN, JUL, AUG, SEP, OCT, NOV, DEC.

The expiry date label should also include the following text:

"See package insert for further information"

Unit-specific product information such as product weight may also be included on the expiry date label. For example:

"84 g"

Where the expiry date label is printed as a quadrant label on its own, it should also have the short form donation number barcode identifier (see chapter 24.3.5). This is not necessary where the label is printed as part of a status label (already including this identifier). An example of an expiry date label is shown in Figure 24.13.

Description of Figure 24.13: Expiry date label example

The image shows an example of an expiry date label. The short form unit identifier is provided in eye-readable and barcode formats. Text on the label reads 'Do not use after 22 Jan 2003. If stored at -40°C or lower. Weight: 75g. See package insert for further information'. The expiry barcode is included at the bottom of the label.
